Description

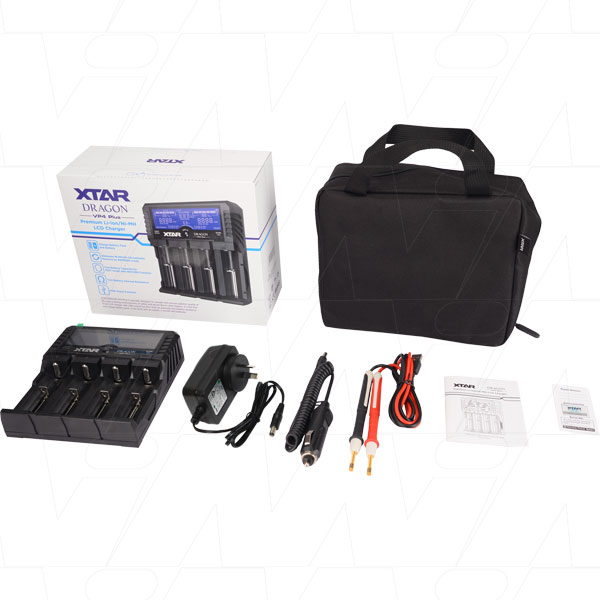

Intelligent multi-functional LiIon & NiMH battery charger featuring:

• Battery charging – compatible with almost all sizes of single cell LiIon or NiMH/NiCd batteries.
• Battery charging – includes charge port for 11.1V/3S battery packs.
• Battery test mode – Charge > Discharge > Charge. Accurately test real capacity of your batteries.
• Battery refresh mode – Discharge > Charge. Eliminate memory effect of NiMH batteries.
• Powerbank (USB output charging) – 2.4A max output suitable for charging 5V USB devices.

Charging Parameters:

• Input: 12VDC 3.0A
• 0.5A?Constant Current Output: 500mA x 4
• 1.0A?Constant Current Output: 1000mA x 4
• 2.0A?Constant Current Output: 2000mA x 4
• Cut-off Voltage:
  • LiIon: 4.2V?0.05V
  • NiMH/NiCd: 1.45V?0.1V
• USB output: 5VDC 2.4A max.
• 11.1V/3S battery pack charging: 1000mA
• Operating temp: 0-40?C

Other Features:

• Three user selectable charge current options: 0.5A, 1.0A or 2.0A.
• Charge up to four 32650/D size batteries at the same time.
• Using the test function with the included test cables, determine battery’s internal resistance – lower internal resistance can equal better performance.
• Built in micro memory card automatically saves up to 64 test records of discharging and charging capacity after each TEST cycle.
• Select REFRESH mode to eliminate any existing memory effect in NiMH batteries.
• Automatically selects suitable charging current for USB devices connected to the VP4 Plus USB output port.
• Charge single cell batteries, battery packs and USB devices SIMULTANEOUSLY when the VP4 Plus is connected to mains power.
• High quality LCD screen displays heaps of information: charging current, battery status, battery capacity percentage, battery types and channels, battery voltage and resistance and much more.
• Alerts sound when there is an error or charging/test process is complete.
• Easy to use, consumer friendly user interface.
• Innovative design allows maximum heat dissipation during fast charging.
• 0V battery activation.
• Reverse polarity and short circuit protection, flame retardant case, temperature monitoring, extra low safe input voltage.
• 2 years warranty.
