Description

Product Details

Selling Unit	EACH
Model No	12LFP7.6
Inventory Code	89006-026
Brand

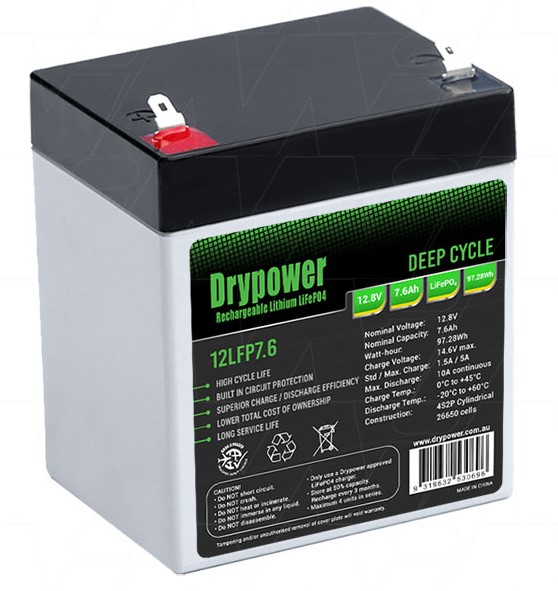

Description	High power 12.8V 7.6Ah lithium iron phosphate (LiFePO4) rechargeable battery
Application	Caravan/RV/camping, mobility, marine, medical, solar, and more
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Watt Hour	97.3Wh
Nominal Capacity	7.6Ah
Maximum Continuous Discharge Current	10A
Termination	F2 (6.35mm Spade)
Size	4S2P
Width	90mm
Height	101mm
Length / Breadth / Depth	70mm
Weight	900g

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement.

4S2P-Cylindrical Construction.

Specifications:

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 10A
• Charge voltage: 14.2V – 14.6V (14.2V recommended)
• Standard charge current: 1.5A
• Max. cont. charge current: 5A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 4S
• Parallel Connection: Nil

Important Information – SERIES CONNECTION CAPABLE

This Drypower Lithium Iron Phophate battery can be connected in series up to 4S.
No parallel connection allowed.

*See Product Manual or Datasheet for more information
