Description

Product Details

Selling Unit	EACH
Model No	12LFP200PHR
Inventory Code	89006-008A
Brand

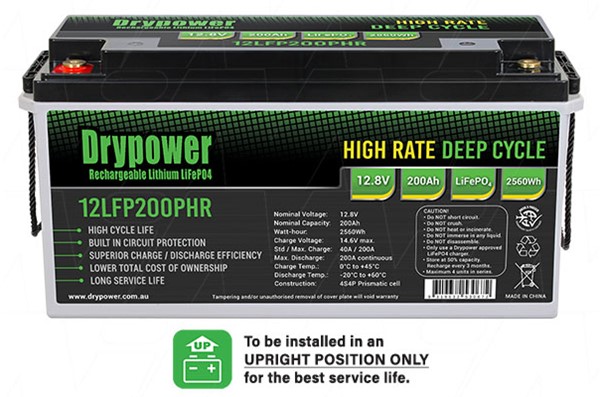

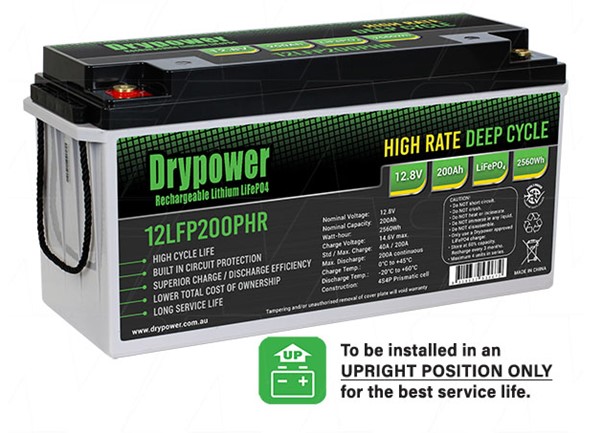

Description	High rate 12.8V 200Ah lithium iron phosphate (LiFePO4) rechargeable battery
Application	Caravan/RV/camping, mobility, marine, medical, solar, and more
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Watt Hour	2560.0Wh
Nominal Capacity	200Ah
Maximum Continuous Discharge Current	200A
Termination	F18 (M8 Bolt)
Size	4S4P
Width	485mm
Height	240mm
Length / Breadth / Depth	170mm
Weight	21.2kg

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

HIGH RATE MODEL – 200A Maximum Continuous Discharge

4S4P Prismatic Construction

Specifications:

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 200A
• Charge voltage: 14.2V – 14.6V (14.2V recommended)
• Standard charge current: 40A
• Max. cont. charge current: 200A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 4S
• Parallel Connection: Up to 2P (please see Installation Instructions)

High output: This battery is rated to a 200 amp continuous discharge. This is suitable to run inverters rated up to 2000 Watts.
For larger inverters in RV & Marine applications we recommend the use of the VoltGo VLRV2560A or Pylontech RT12100G31 batteries. As “Managed” batteries, these products can be paralleled for higher discharge applications such as use by the Victron 3kVa inverter charger range. Please contact the engineers at Master Instruments for further information.

Important Information – SERIES OR PARALLEL CONNECTION CAPABLE

This Drypower Lithium Iron Phosphate battery can be connected in series up to 4S, OR up to 2 in Parallel*
*For parallel connections please refer to Installation Instructions

Series AND Parallel connection at the same time is not allowed
