Description

Product Details

Selling Unit	EACH
Model No	12LFP11.4
Inventory Code	89006-019
Brand

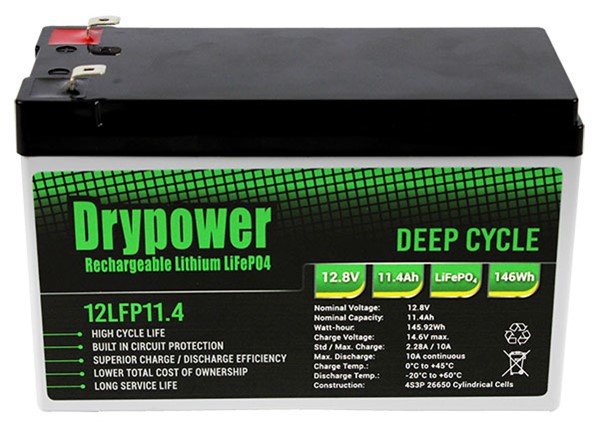

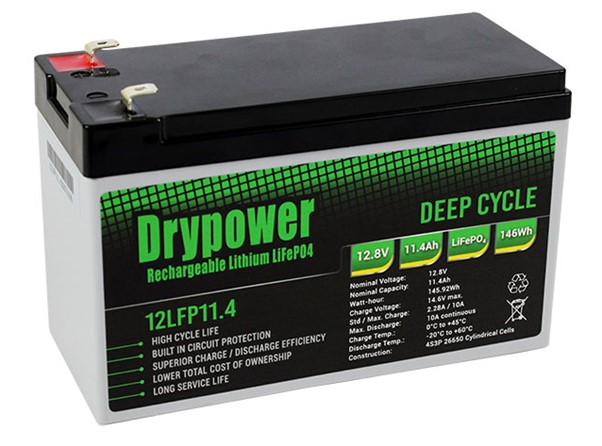

Description	High power 12.8V 11.4Ah lithium iron phosphate (LiFePO4) rechargeable battery
Application	Caravan/RV/camping, mobility, marine, medical, solar, and more
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Watt Hour	145.9Wh
Nominal Capacity	11.4Ah
Maximum Continuous Discharge Current	10A
Termination	F2 (6.35mm Spade)
Size	4S3P
Width	151mm
Height	94mm
Length / Breadth / Depth	65mm
Weight	1.3kg

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

4S3P-Cylindrical Construction

Specifications:

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 10A
• Charge voltage: 14.2V – 14.6V (14.2V recommended)
• Standard charge current: 2.28A
• Max. cont. charge current: 10A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 4S
• Parallel Connection: Nil
