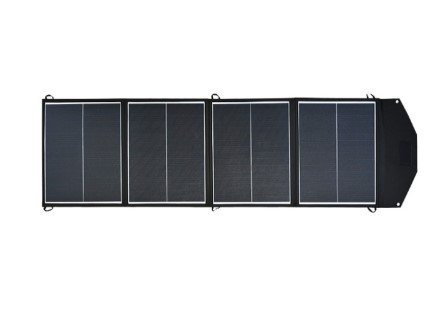

AMPTRON 200W 12V PERC SHINGLED SOLAR BLANKET AT-SOLBLANK-19.4-200-BV10
AMPTRON 200W 12V PERC SHINGLED SOLAR BLANKET AT-SOLBLANK-19.4-200-BV10
$499.00
This solar blanket has been redesigned by Amptron and released for 2024. The PERC Shingled Mono solar cell technology achieves zero cell spacing, which effectively increases the light receiving area of the module for improved power conversion efficiency. It features portability and high-power output for easy outdoor use. Featuring the New Amptron TOUGHSHIELD ETFE durable coating, this panel will hold up to the rigors of outdoor use in tough environments. The blanket is compatible with the connections of mainstream portable power stations (via adapters) and various types of batteries. Our cables use genuine Anderson connectors.
In stock
We cannot ship all products Australia-wide. Please enter your postcode to see if we can ship this product to you.
Description
200W 12V Folding Perc-Shingled Solar Blanket
This solar blanket has been redesigned by Amptron and released for 2024. The PERC Shingled Mono solar cell technology achieves zero cell spacing, which effectively increases the light receiving area of the module for improved power conversion efficiency. It features portability and high-power output for easy outdoor use. Featuring the New Amptron TOUGHSHIELD ETFE durable coating, this panel will hold up to the rigors of outdoor use in tough environments. The blanket is compatible with the connections of mainstream portable power stations (via adapters) and various types of batteries. Our cables use genuine Anderson connectors.
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-SOLBLANK-19.4-200-BV10
|
200W 12V PERC SHINGLED
SOLAR BLANKET |
|
Maximum power rating
|
Pmax 200 Watts (50W x 4)
|
|
|
Solar Blanket dimensions (Folded)
|
L-615mm x W-470mm x H-25mm
|
L-2110mm x W-615mm x H-4mm (unfolded)
|
|
Cell Efficiency
|
22%
|
|
|
Current at max power
|
Imax 10.31 Amps
|
|
|
Voltage at max power
|
Vmax 19.4 Volts
|
|
|
Short circuit current
|
Isc 10.93Amps
|
|
|
Open circuit voltage
|
Voc 21.9 Volts
|
|
|
No of cells
|
136 (2 x 17 x 4)
|
|
|
Power Temperature Coefficients
|
-0.38%/℃
|
|
|
Output Power Tolerance
|
+/- 5 %
|
|
|
Weight
|
5.7kg
|
